6ft Chain Link Fencing and Accessories for British Columbia Projects
6ft chain link fencing and accessories form a complete perimeter system for projects in British Columbia, Canada. Product categories include standard galvanized chain link mesh, PVC-coated chain link fencing, and full accessory sets such as posts, rails, clamps, and tension wires. Materials typically use low-carbon steel wire with hot-dip galvanized or PVC coating for corrosion resistance. The standard height is 6 ft (≈1.8 m), with replaceable mesh gauges (9–12 gauge), mesh openings (40–60 mm), and customizable roll lengths and post sizes. Accessories are interchangeable for easy installation and maintenance.

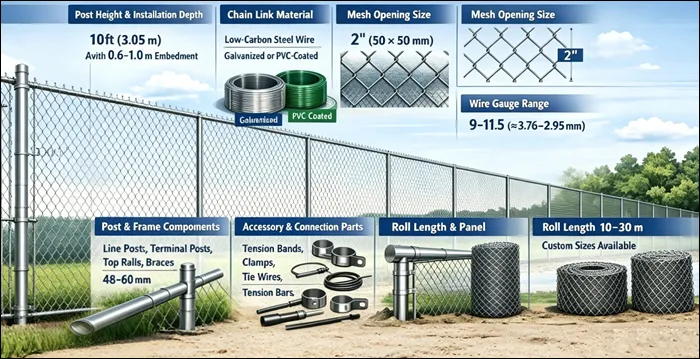

Technical Specifications for Chain Link Fencing

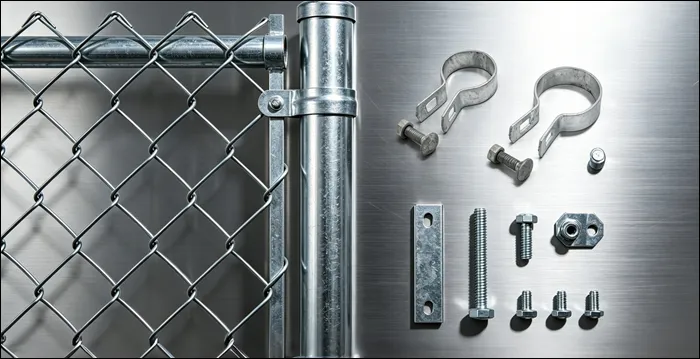

6ft Chain Link Fence Panel with Post Clamps Bolts and Connection Hardware System Components
- Fence Height: Fence height 6 ft (1.83 m) for boundary and security.
- Post Height and Installation Depth: Post height 10 ft (3.05 m) with 0.6–1.0 m embedment.
- Chain Link Material: Low-carbon steel wire with galvanized or PVC-coated finish.
- Mesh Opening Size: 2 inches (50 × 50 mm).
- Wire Gauge Range: 9–11.5 (≈3.76–2.95 mm).
- Coating and Surface Protection: Zinc coating 200–275 g/m²; PVC thickness 0.4–0.8 mm.
- Post and Frame Components: Line posts, terminal posts, top rails, braces; size 48–60 mm.
- Accessory and Connection Parts: Tension bands, tie wires, clamps, tension bars.
- Roll Length and Panel: Roll length 10–30 m; custom sizes available.
- Application Scope: Residential, construction, sports, commercial, infrastructure fencing.
600-Meter Perimeter Galvanized Steel Post Specifications
The structural framework consists of hot-dip galvanized steel posts designed for long-term corrosion resistance. For a 600-linear-meter project, the system utilizes a combination of line posts for intermediate support and terminal posts (corner, end, and gate posts) for tensioning.

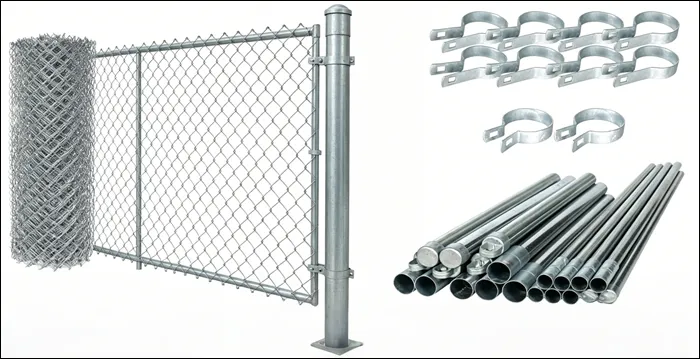

6ft Chain Link Fence Roll Panel Steel Posts Clamps Bands and Pipe Components System Layout
- Galvanized Steel Posts: Line posts spaced 2.5–3.0 m; terminal posts at ends and corners; height 10 ft (3.05 m); diameter 48–60 mm.
- Post Caps: Caps fit post diameter 48–60 mm; used on line and terminal posts; quantity matched to total posts.
- Clamps and Bands: Tension bands and rail clamps sized for 48–60 mm posts; installed at 300–450 mm spacing along posts.
- Ties and Wire Ties: Tie wires 200–300 mm length; spacing 300–500 mm along mesh and rails; used for mesh fixing.
- Post Feet or Base Plates: Base plates sized 120 × 120 mm to 200 × 200 mm; thickness 5–10 mm; anchor holes 10–14 mm.
- Vehicle Gate: Vehicle gate width 12 ft (3.66 m); height 6 ft (1.83 m); frame tube 40–60 mm; mesh opening 50 × 50 mm.
- Pedestrian Gate: Pedestrian gate width 4 ft (1.22 m); height 6 ft (1.83 m); frame tube 30–50 mm; mesh opening 50 × 50 mm.
- Total System Coverage: Accessories configured for ≈600 m fence length; quantities based on post spacing 2.5–3.0 m and gate positions.
6ft Chain Link Fence Panel with Post Clamps Bolts and Connection Hardware System Components
